Oil Pipe Thread Height Gages, Such as External、 Internal、Buttress-Casing Thread Height Gages, used to measure the API thread height, need be preset with the Height Standards. Sold separately from the gages
| P/N | Type | Range | Resolution | Usage |
| 642-007 | FYOU-WGW | 0～3.5mm | 0.01mm | Measure the outer screw height and inner screw height over 5 1/2 in (139.7mm),API Spec 5B:2017 |

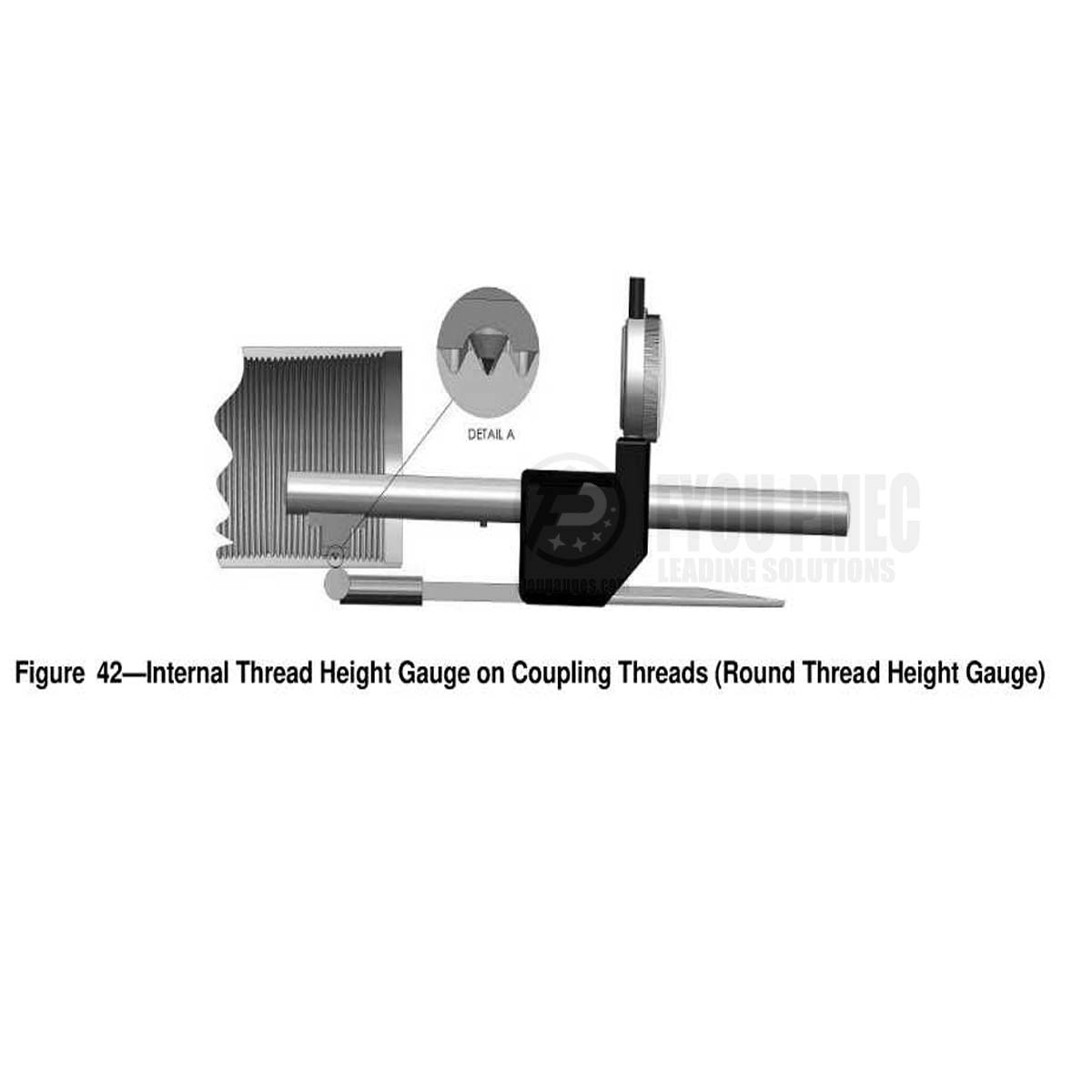

| 642-008 | FYOU-WGN | 0～3.5mm | 0.01mm | Measure the inner screw height within 5 1/2in(139.7mm), API Spec 5B:2017 |
| 642-009 | FYOU-WGW2 | 0～3.5mm | 0.01mm | Measure buttress screw height over 139.7mm, API Spec 5B:2017 |
| 642-034 | FYOU-WGW4 | 0～4mm | 0.01mm | Measure the thread form V-038R external thread height , API Spec 7-2:2017 |
| 642-035 | FYOU-WGW5 | 0～4mm | 0.01mm | Measure the thread form V-040 external thread height , API Spec 7-2:2017 |
| 642-036 | FYOU-WGW6 | 0～4mm | 0.01mm | Measure the thread form V-050 external thread height , API Spec 7-2:2017 |
| 642-037 | FYOU-WGN-038R | 0～4mm | 0.01mm | Measure the thread form V-038R internal thread height , API Spec 7-2:2017 |
| 642-038 | FYOU-WGN-0.040 | 0～4mm | 0.01mm | Measure the thread form V-040 internal thread height , API Spec 7-2:2017 |
| 642-039 | FYOU-WGN-0.050 | 0～4mm | 0.01mm | Measure the thread form V-050 internal thread height , API Spec 7-2:2017 |
Oil Pipe Thread Measuring Gauges, These high precision instruments are more than 20 kinds and widely used for oil industry to measure the monomial parameters of thread taper, thread pitch and thread height for oil pipe,such as tubing, casing and its connections, also are used to measure drill shank and rotary shoulder connections. It is constituted by the transmission system of rigidity main body and indicator to control and improve the quality of thread. It is the basic tools to measure the oil pipe thread and completely accord with international standard (API Spec5B&API SPEC 7-2).
When you order, please let me just know the thead type need be measured, we will provide you the best solutions and best quotations. More details or any questions please contact: sales@fyougauges.com or WhatsApp/Wechat: +86 13962168423
