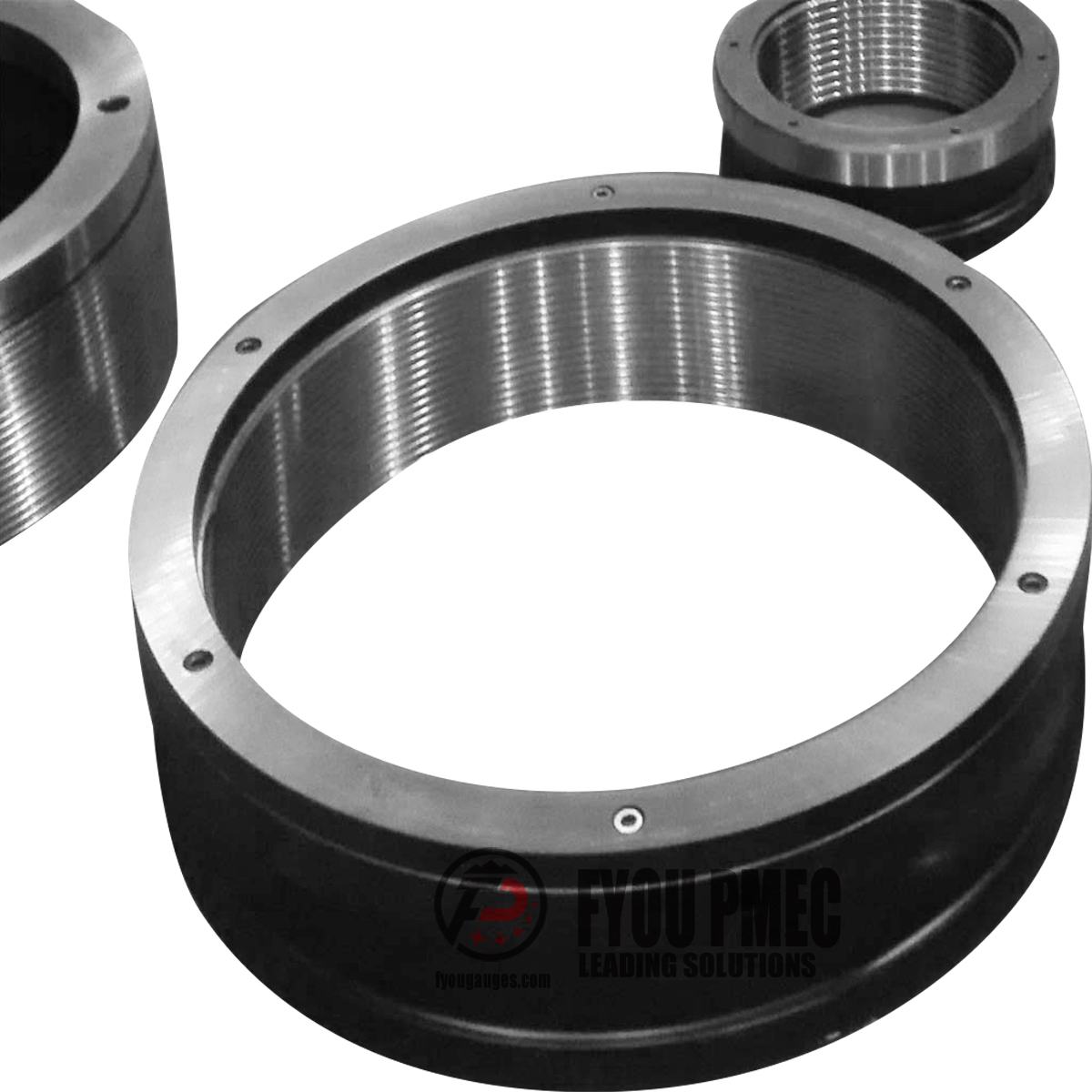

FYOU PMEC provides API 8 Round Casing working (STC & LTC) and reference master gages per API Specification 5B for sizes from 4-1/2 to 20 inches in diameter. All working gages are manufactured and certified using a certified API reference master gage as required by the standard.
| CASING WORKING/MASTER/TAPER GAGES | |||||
| SIZE | Outer Dia. | T.P.I | T.P.F | TAPER | ANGLE |
| 4 1/2 (CSG,LCSG) | 114.3 | 8 | 3/4 | 3/4 | 60° |
| 5 (CSG,LCSG) | 127 | 8 | 3/4 | ||
| 5 1/2 (CSG,LCSG) | 139.7 | 8 | 3/4 | ||
| 6 5/8 (CSG,LCSG) | 168.28 | 8 | 3/4 | ||
| 7 (CSG,LCSG) | 177.8 | 8 | 3/4 | ||
| 7 5/8 (CSG,LCSG) | 193.68 | 8 | 3/4 | ||
| 8 5/8 (CSG,LCSG) | 219.08 | 8 | 3/4 | ||
| 9 5/8 (CSG,LCSG | 244.48 | 8 | 3/4 | ||
| 10 3/4 (CSG,LCSG) | 273.05 | 8 | 3/4 | ||
| 11 3/4 (CSG,LCSG) | 298.45 | 8 | 3/4 | ||
| 13 3/8 (CSG,LCSG) | 339.73 | 8 | 3/4 | ||
| 16 (CSG,LCSG) | 406.4 | 8 | 3/4 | ||
| 18 5/8 (CSG,LCSG) | 473.08 | 8 | 3/4 | ||
| 20 (CSG,LCSG) | 508 | 8 | 3/4 | ||
Instructions:
1）Implementation of standards：API SPEC 5B：2017
2）Material: GCr15， Measuring surface hardness 60-63HRC;
3）Comes with the calibration certificates
How to order?
For example:
Pls mark : Master Gauges:4 1/2 CSG RING&PLUG, or 4 1/2 CSG BOX&PIN,
and E-mail to: sales@fyougauges.com
